Brand: Computers Products

Product Code: C122-1293908

Availability:In stock

$21.98 21.98
Specification:1. Item: Switch Tester2. Switch Type: Kailh BOX Switch3. Keys Amount: 9 PCS (Black Switch, Red Switch, Brown Switch, White Switch, Heavy Pale Blue Switch, Heavy Dark Yellow Switch, Heavy Burnt Orange Switch, Jade Switch, Navy Switch)
  BOX Red BOX Black BOX Brown BOX White Heavy Pale Blue
Type Linear Linear Tactile Clicky Clicky
Operating Force 45gf(+/- 10gf) 60gf(+/- 10gf) 50gf(+/- 10gf) 50gf(+/- 10gf) 60gf(+/- 15gf)
Tactile Force - - - - 60gf(+/- 10gf) 55gf(+/- 10gf) 70gf(+/- 10gf)
Pretravel 1.8mm(+/- 0.3mm) 1.8mm(+/- 0.3mm) 1.8mm(+/- 0.3mm) 1.8mm(+/- 0.3mm) 1.8mm(+/- 0.3mm)
Total Travel 3.6mm(+/- 0.3mm) 3.6mm(+/- 0.3mm) 3.6mm(+/- 0.3mm) 3.6mm(+/- 0.3mm) 3.6mm(+/- 0.3mm)
Reset Point 1.8mm 1.8mm 1.8mm 1.8mm 1.8mm

  Heavy Dark Yellow Heavy Burnt Orange Jade Navy
Type Tactile Tactile Clicky Clicky
Operating Force 60gf(+/- 15gf) 60gf(+/- 15gf) 50gf(+/- 15gf) 60gf(+/- 15gf)
Tactile Force 70gf(+/- 10gf) 70gf(+/- 10gf) 75gf(+/- 10gf) 95gf(+/- 15gf)
Pretravel 1.8mm(+/- 0.3mm) 1.8mm(+/- 0.3mm) 1.8mm(+/- 0.3mm) 1.8mm(+/- 0.3mm)
Total Travel 3.6mm(+/- 0.3mm) 3.6mm(+/- 0.3mm) 3.6mm(+/- 0.3mm) 3.6mm(+/- 0.3mm)

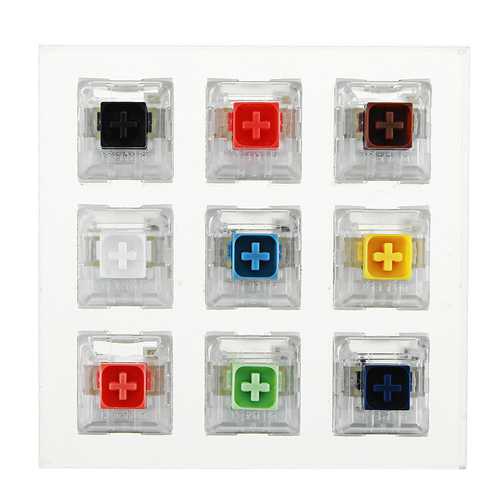

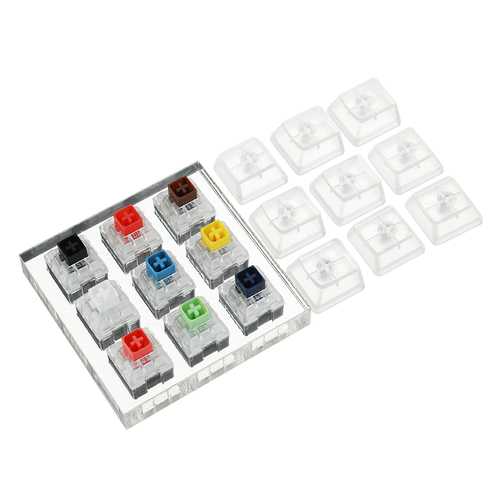

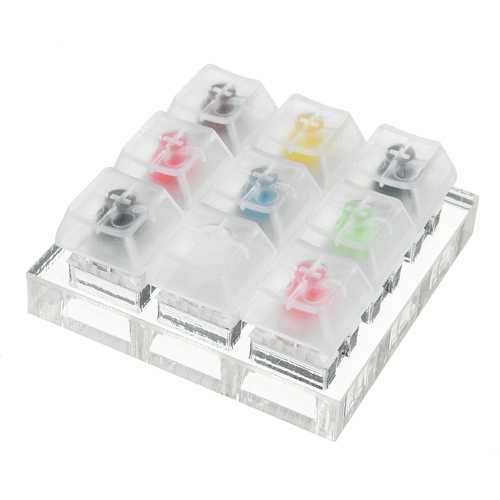

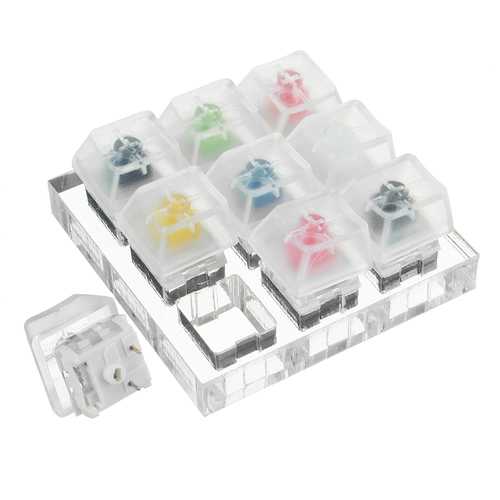

Features:1. A good sample to try Kailh BOX switch.2. Mounted on PCB to simulate actual key feeling.3. Equipped with acrylic base and clear keycaps.Package Included:1 * 9 Key Kailh BOX Switch Keyboard Switch Tester with Acrylic Base and Clear Keycaps
